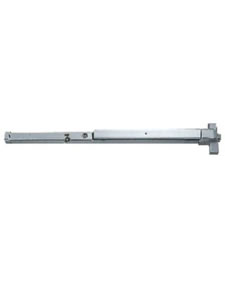

1900 Series Push Bar Panic Exit Device

1900 Series Push Bar Panic Exit Device

Description:
1900 series push bar panic exit device consists of latch bolt, spring, end cap and press rod. The series exit devices adopt chassis mounted unit construction to ensure easy installation and maintenance. This push bar panic exit device also can provide uncompromising security and safety for both single and double fire exit doors. It offers modern touch pad style for metal and timber doors. Slight pressure on the exit device touch bar will retract latch for exit. The push bar panic exit device has obtained UL certificate.The exit devices can be optimized for use with Oubao door closer.

Properties of 1900 Series Push Bar Panic Exit Device:

DK1901:
1.The panic exit devices are UL listed for use on fire related doors.
2.This rim type panic hardware is non-handed, and field reversible and field sizeable.
3.Dogging of the panic exit devices shall be permitted with the use of a furnished Allen key.
4.This push bar panic exit device adopts insurance latch and Buzzer alarm function to prevent prying from outside.
5.It can configure with semi-length push rail.

DK1902:
1.This rim type panic hardware without knob is field reversible and field sizeable.
2.The push bar panic exit devices employ insurance latch and Buzzer alarm function to prevent prying from outside.
3.The alarm function can be shut down by a key.
4.The exit devices are made from steel or stainless steel.

Notice:
1.Tighten the screws two months after the push bar panic exit device being installed;
2.Do not install the panic hardware in the open air, or it well easily get rusty.

Packaging and Transportation:
1.One piece in an inner box, four inner boxes in one carton;
2.Transport by sea or by air.

Founded in 1987, Oubao Security Technology Co., Ltd. is the first joint-stock company and one of the largest professional manufacturer and supplier of push bar panic exit device in China. With registered capital of 55.8 million RMB, we offer a broad line of security protection products, including door closer, fingerprint-lock, panic exit devices and intelligent lock. We can reach annual output of 6 million door closers and 500 thousand locks. Till now, we are able to provide 80% of our panic exit devices to customers from the entire American continent, Europe, Southeast Asia, Middle-East, Africa and Oceania, including more than 80 foreign countries and regions.
