1700 Series Fire Panic Exit Device
Description:
1700 series fire exit hardware consists of latch bolt, spring, end cap and press rod. The panic and fire exit device adopts chassis mounted unit construction to ensure easy installation and maintenance. This panic hardware also can provide uncompromising security and safety for both single and double fire exit doors. It offers modern touch pad style for metal and timber doors. Slight pressure on the fire exit hardware touch bar will retract latch for exit. The panic exit device has obtained UL certificate.What’s more, it has passed the three hours fire test and achieved the ANSI/BHMA Grade 1. The fire exit hardware can be optimized for use with Oubao door closer.
Properties of 1700 Series Panic and Fire Exit Device:

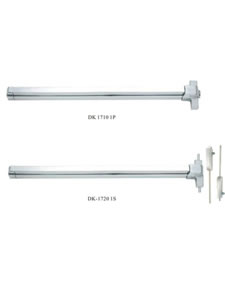

DK1710:
1.This panic hardware is UL listed for use on fire related doors.
2.It has passed 3 hours fire test, and obtained ANSI/BHMA Grade 1.
3.This rim type fire exit hardware is non-handed, and suitable for both right hand and left hand door.
4.It can configure with semi-length or full length push rail.
5.With one lateral lock point, this fire exit device is made from steel or stainless steel.
DK1720:
1.This fire exit hardware is listed by Underwriters’ Laboratories Inc.
2.It has passed 3 hours fire test, and obtained ANSI/BHMA Grade 1.
3.This fire exit device is non-handed, and suitable for both right hand and left hand doors.
4.The standard unit of the fire exit hardware fits to the doors up to 1100mm in width and 2100mm in height.
5.This vertical type panic hardware two lock points.
Notice:
1.Tighten the screws two months after the fire exit hardware being installed;
2.Do not install the panic hardware in the open air, or it well easily get rusty.
Packaging and Transportation:
1.One piece in an inner box, four inner boxes in one carton;
2.Transport by sea or by air.
Oubao Security Technology Co., Ltd. is a specialized manufacturer and supplier in fire exit hardware in China. With registered capital of 55.8 million RMB, we offer a broad line of security protection products, including door closer, fingerprint lock, fire exit device and intelligent lock. Till now, we’re able to annually output 6 million door closers, 100 thousand electronic locks, 200 thousand intelligent locks, 300 thousand panic exit devices and 100 electromagnetic locks. We also resort to strict outsourcing supervision to guarantee the superior quality. We have gained the qualification of independent third party testing.
.
