Home » Products » Electromagnetic Lock » Double Door Magnetic Lock

Double Door Magnetic Lock

Z5200 Series Stainless Steel Keypad Card Door Lock

Description:
Lanteky single door magnetic lock and double door magnetic lock are locking devices that compose of an electromagnetic core and an armature plate. The electromagnetic core is made of a laminated steel-core surrounded with hundreds of turns of copper wire. By attaching the electromagnet to the door frame and carbon steel plate affixed to the door, the electromagnet tightly attracts the armature plate in order to hold the door locked when a current passing through. Single door magnetic lock without interconnecting mechanical parts requires constant power. Both single door magnetic lock and double door magnetic lock are manufactured with high quality.

Properties of Magnetic Lock:
1. The single door magnetic lock equipped with bracket mounting is easy to install in out-swing doors.
2. This double door magnetic lock is designed with sleek and low profile as well as refined lines.
3. Both single door magnetic lock and double door magnetic lock can integrate with the door position switch.
4. The instant release circuit function of the magnetic lock will prevent residual magnetism.
5. The single door magnetic lock can be used efficiently with low power.
6. This double door magnetic lock is optimized for use with door closers.

Parameters:

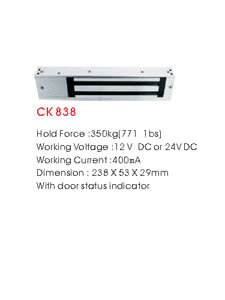

Type CK818 CK818MS CK828 CK828MS CK838 CK838MS
Hold Force 180kg 180kg 280kg 280kg 350kg 350kg
Working Voltage DC 12V DC 12V DC 12V DC 12V DC 12V/24V DC 12V/24V
Working current 300mA 300mA 450mA 450mA 400mA 450mA
Dimension (mm) 173×41×23.5 205×36×23.5 208×53×29.5 234×48×29.5 238×53×29 269×49×29

Founded in 1987, Lanteky Security Technology specializes in manufacturing door closers and magnetic lock in China. Our main security protection products include door closers, electronic lock, electromagnetic lock, fingerprint-lock, panic exit device, intelligent lock, single door magnetic lock and double door magnetic lock. We also resort to strict outsourcing supervision to guarantee the superior quality. We provide both free and chargeable samples as well as information consultant services on our products.
